Tape Storage Products
Spectra Cube Library
Superior versatility & ease-of-use in a cloud-optimized library for on-prem, hybrid cloud and IaaS environments
Designed for clouds, optimized for ease of use
The first enterprise library designed specifically for clouds, Spectra Cube libraries are easy to deploy, simple to manage, scale on demand without disruption, and can be serviced in minutes without tools, downtime or specialized skills. Modern backup and archive applications using Amazon S3 or S3 Glacier object formats integrate seamlessly to create highly cost-effective on-prem or hybrid cloud tiers of object-based tape. It’s also an ideal platform for delivery of storage services by managed service providers or cloud service providers.
Max Capacity:
LT0-9 Native: 30PB
LT0-9 Compressed: 75PB
Max Drives:
Half Height: 30
Full Height: 16
Max Slots:
1,670
Max Throughput (Half Height):
Native – 32.4 TB/hr.
Compressed – 81.0 TB/hr.
Want to know more about the Spectra Cube library?
Engineered for maximum flexibility & high reliability
Menu
TAPE LIBRARIES
Benefits
-
Simple, intuitive user interface. Manage through touchscreen or remote devices and automate tasks through REST API.
-
Dynamically scalable capacity and throughput. Keep your systems online and running whenever you add slots, media or drives.
-
Best-in-class performance, reliability and longevity. Proven high-performance components, simple servicing without tools or special skills, Spectra Certified Media with lifetime guarantee.
-
Optimal data density. Reduce data center floor space, energy consumption and CO2 emissions.
-
Secure data against cyberattacks. Protect your data against ransomware attacks and data loss with immutable storage and air-gapped isolation.
Spectra Cube

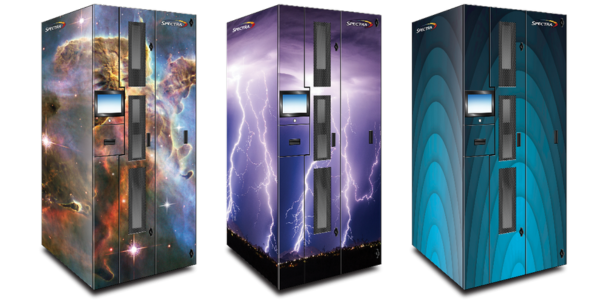

Custom Wrap Your Library
Custom wrap your Spectra Cube library with a blend of aesthetic appeal, brand representation, and character. Opt for standard, decorative or bespoke graphics to infuse your infrastructure with a practical individuality that reinforces your organization’s identity and creates a visually engaging environment that will resonate across your data center.
Specifications at a glance
| Max Slot Count | Media Type | ||
| Max Native Capacity1 | ||
| Max Compressed Capacity1, 2 | ||
| Max Drives | ||
| Max Native Throughput1 (TB/hr.) | ||
| Max Compressed Throughput1 (TB/hr.) | ||
| Max SLS Partitions | ||
| Tape Drives Supported | ||
| Dual Robotics | ||
| 1. Stated maximums based on exclusive use of LTO-9 drives. 2. LTO-9 assumed compression ratio is 2.5:1. |
||
| Mode | Dry-bulb Temperature | Max Temperature Rate of Change | Relative Humidity (non-condensing) | Max Humidity Rate of Change | Altitude (max) |
| Allowable Environment | 16°C to 32°C (60°F to 90°F) | 5°C per hour 9°F per hour | 20% to 80% 22°C dew point max | 5% per hour with no condensation | 3048 m (10,000 ft) |
| Recommended Environment | 16°C to 25°C (60°F to 77°F) | 5°C per hour 9°F per hour | 20% to 80% 22°C dew point max | 5% per hour with no condensation | 3048 m (10,000 ft) |
| Library MTTR | Less than 5 minutes for Field Replaceable Units (FRU) Mean Cycles Between Failures (MCBF): Over 3 million Mean Time Between Failures (MTBF): 250,000 power-on hours |
| Power Requirements | Maximum configuration with 16 LTO Drive; 1,186 Watts AC at 200-240v AC Redundant N + 1 Power / 80 PLUS Platinum Power Supplies Heat Dissipation: 4,047 BTU/hr. (max operating, same configuration) |
| Encryption Supported | BlueScale Standard | BlueScale Professional1 | Spectra SKLM1 | Key Management Interoperability Protocol (KMIP) |
| Spectra TeraPack tape magazine | Yes, each TeraPack magazine holds ten LTO tapes to efficiently import and manage tape media as well as reduce cycle and tape mount times. |
| Queued Ejects Support | Yes |
| Auto Clean Support | Yes |
| Camera (Spectra Vision) | No |
| Tape Technology Supported | LTO-9 | LTO-8 | LTO-7 | LTO-6 |
| |
| Dimensions | |
|---|---|
| Main Frame | |
| Width | 35.9 in. (91.2 cm.) |
| Depth | 45.4 in. (115.3 cm.) |
| Height | 79.4 in. (201.7 cm.) |
| Weight | 1,028 lbs. (466.3 kg.) |
Ready, Set, Grow!
We're putting the deep freeze on rising cloud storage costs
Spectra Cube solutions can bring object-based tape to any cloud environment, with simplicity & savings for all.
